Description
Dormakaba offers a range of electromagnetic (EM) locks and drop bolt locks with varying holding forces, along with compatible mounting brackets and specialized models for specific applications. Below is an overview of these products:

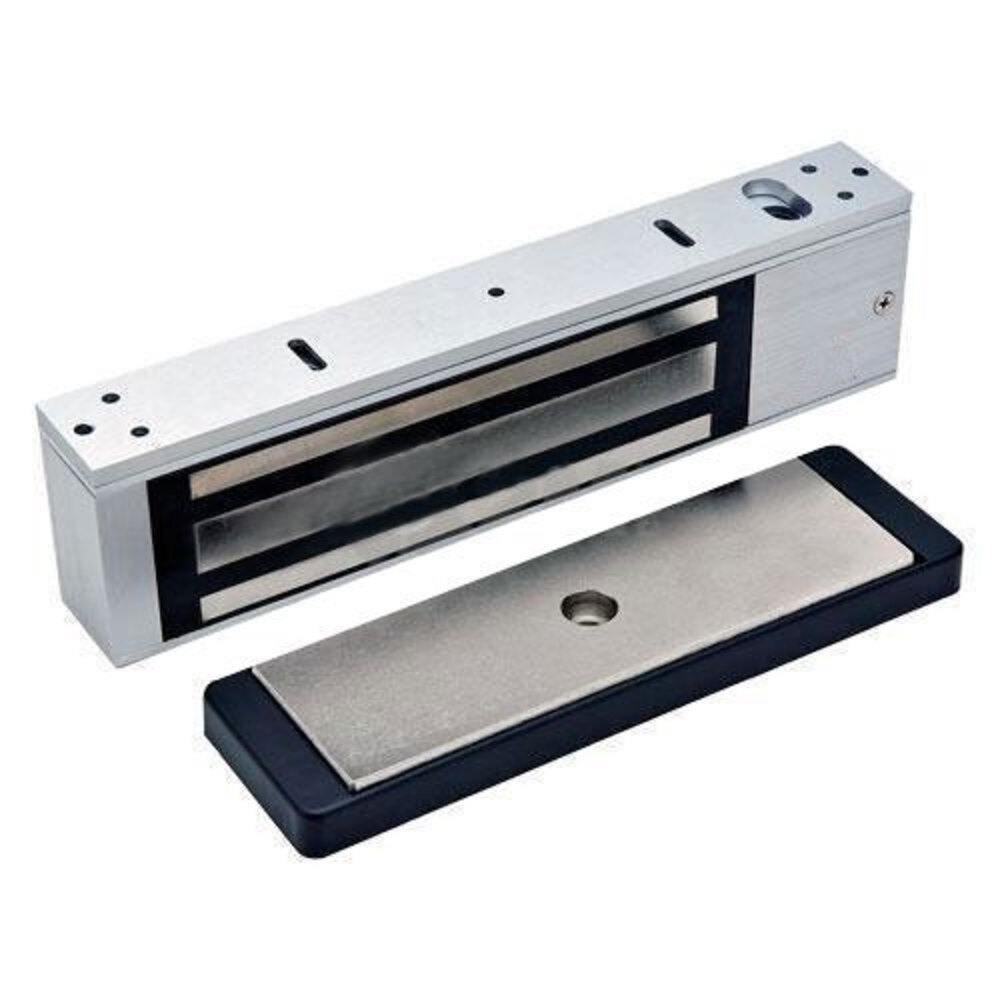

Electromagnetic (EM) Locks:
EML310: Single-door EM lock with a 1,500 lb holding force.
EML320: Double-door EM lock with a 1,500 lb holding force.
EML371: Single-door surface-mounted EM lock with a 750 lb holding force.
EML372: Double-door surface-mounted EM lock with a 750 lb holding force.
EML375: Compact surface-mounted EM lock with a 300 lb holding force, suitable for small enclosures.
EMLSG360: Mortise EM lock for sliding doors with a 750 lb holding force.
EMLSG365: Compact mortise EM lock for sliding doors with a 300 lb holding force.
EMLSG380: Weather-resistant EM lock for gates with a 1,500 lb holding force.
EMSL-2000 Series: Micro shear locks with holding forces up to 2,000 lbs, designed for concealed mounting.
EMSL-2700 Series: High shear locks with holding forces up to 2,700 lbs, suitable for concealed mounting.
Drop Bolt Locks:
EM Series: Electromagnetic door holders with dual voltage capability and an adjustable catch plate, providing versatility for varying applications.
DORMAKABA
Mounting Brackets:
Angle Brackets: Used for narrow header or center-hung single-acting doors when inadequate space is left for mounting. Ideal for narrow aluminum frames.
L Brackets: Suitable for various door and frame configurations.
Top Jamb Z Brackets: Designed for inswinging doors, allowing for horizontal adjustment of the armature plate.
Glass Door Brackets: For mounting armature plates to glass or herculite doors without frames.
Post Brackets: Used to mount armature plates to sliding gates.
Filler Bars: For frame stops narrower than 2 inches.
Spacer Series: For aluminum blade stop frames, used to lower the magnet to align with the armature plate.
Specialized Models:
EMLSG380 GateMag: Weather-resistant EM lock with a rugged stainless-steel housing, making it an excellent solution for interior and exterior perimeter gates.
DORMAKABA
EMSL-2000 and EMSL-2700 Series: Incorporate special alloy steel for greater durability and strength, suitable for high-security applications
