Description
Honeywell PRO4200 Series is a modular and versatile family of access control modules, designed for high-density installations, delivering unmatched flexibility, security, and scalability. These modules are ideal for applications requiring advanced access control solutions while maintaining a compact installation footprint and a superior cost-per-door ratio.
Key Features and Benefits
Modular Architecture: Supports up to 9 modules, power supply, and battery in PRO22ENC1, PRO22ENC2, or PRO22ENC5 enclosures, offering flexibility for diverse installations.
Reader Compatibility: Supports OSDP and Wiegand protocols, enabling integration with the latest secure and tamper-resistant readers as well as legacy systems.
Customizable Inputs and Outputs: Includes user-programmable alarm inputs and relay outputs to meet specific system requirements.
Superior Communication: RS485 communication provides reliable connections for up to 16 downstream I/O or reader modules per port, with a bus length of up to 4,000 ft (1,250 m).
Secure Offline Modes: Customizable settings per reader, including locked, unlocked, and secured access, ensure operational flexibility.
Advanced Database Support: Accommodates up to 100,000 cardholders and stores over 50,000 transactions, ensuring efficient offline operation.
Advanced Integration
The PRO4200 Series seamlessly integrates with Honeywell WIN-PAK® (v4.9 or higher) for enhanced features such as video integration, advanced reporting, elevator control, photo badging, and mobile credential management. It also supports elevator control and touchless access, making it suitable for modern smart buildings.
Modules and Specifications

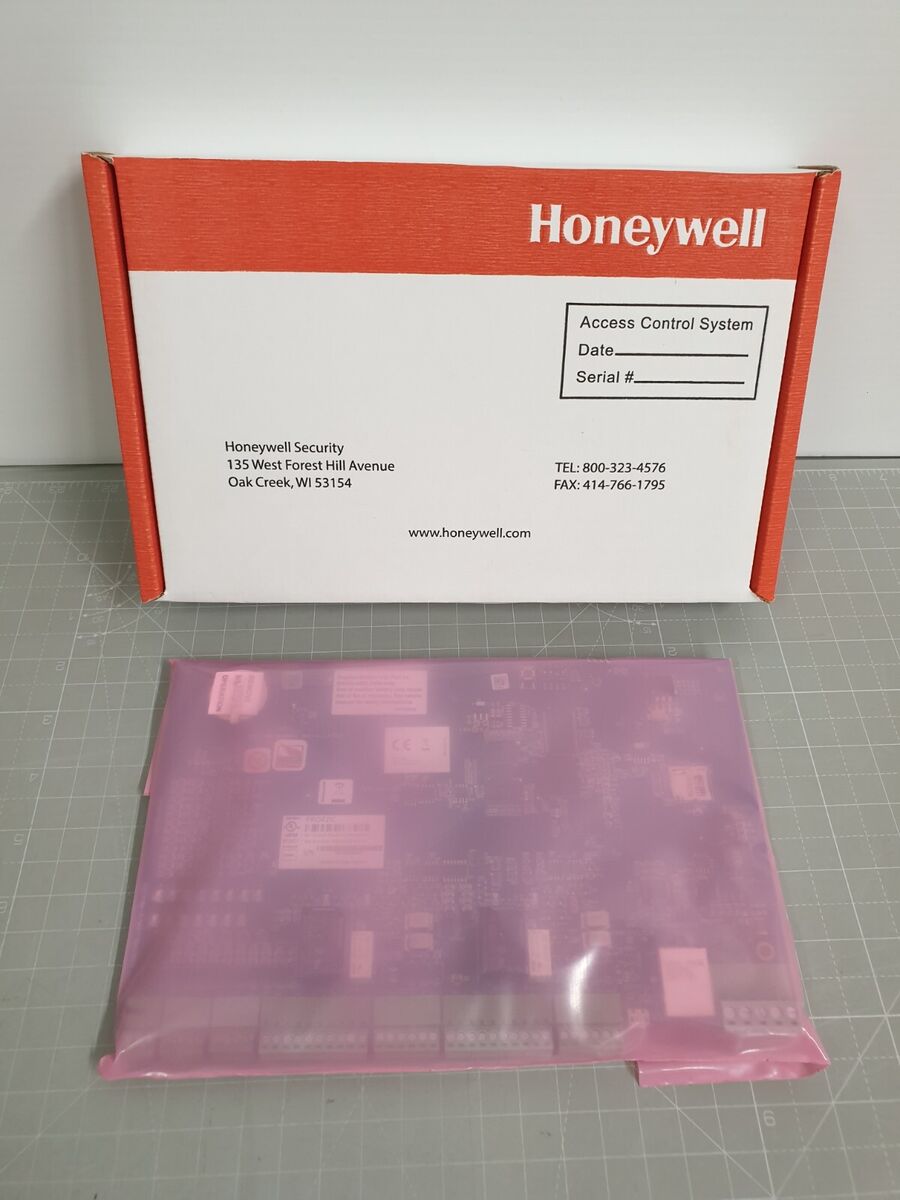

PRO42IC Intelligent Controller: Controls up to 2 doors with support for OSDP (2 per door) or Wiegand readers (1 per door).
PRO42R1 Single Reader Module: Supports one reader and provides 2 alarm inputs and 2 relay outputs.
PRO42R2 Dual Reader Module: Supports 2 readers with up to 8 alarm inputs and 6 relay outputs.
PRO42OUT Relay Output Module: Provides up to 16 Form C relay outputs for controlling elevators, annunciators, or general-purpose outputs.
PRO42IN Alarm Input Module: Offers 16 supervised alarm inputs for advanced monitoring and security.
Flexible Mounting and Enclosures
PRO22ENC1: Wall-mounted enclosure supporting up to 9 modules.
PRO22ENC2: 19” rack-mounted enclosure for 9 modules.
PRO22ENC3: Tile-mounted option with space for 2 modules.
PRO22ENC4: Compact tile-mounted enclosure for one PRO42R1 module.
PRO22ENC5: Cage for custom enclosures, fitting up to 9 modules.
Reliability and Cybersecurity
Enhanced cybersecurity with TLS 1.2/1.1 and AES-256 encryption.
Port-based network access control using 802.1X.
Dedicated tamper and power-monitoring inputs for added security.
Applications
The PRO4200 Series is perfect for enterprise environments requiring scalability and reliability, such as corporate campuses, healthcare facilities, educational institutions, and data centers. With the ability to control up to 34 doors per intelligent controller and support for diverse reader and card formats, the PRO4200 Series ensures future-proofed security solutions.
Choose the Honeywell PRO4200 Series for robust, scalable, and customizable access control tailored to your specific security needs.
