Complete Guide to Morley-IAS Fire Alarm Systems having Panels, Detectors & Modules
When it comes to robust, scalable and highly responsive life-safety solutions, the Morley-IAS Fire Alarm System (by Honeywell) stands as an industry benchmark. Designed for seamless installation and complex cause-and-effect programming, Morley systems protect everything from compact retail spaces to sprawling industrial complexes.
Below is a comprehensive breakdown of the Morley-IAS ecosystem, featuring key device model numbers, names and their specific real-world applications to help you design the perfect fire safety network.
1. Fire Alarm Control Panels (FACPs)
The control panel is the central intelligence of your fire safety network. Morley offers intuitive, microprocessor-based panels tailored for both conventional and addressable networks.
· Morley-IAS Max Series (Max 2, Max 4, Max 8): A next-generation, highly scalable addressable panel supporting up to 8 loops and 128 networked panels. Features a 7-inch HD touchscreen.
o Application: Large-scale commercial buildings, multi-site enterprise networks and high-rise smart buildings requiring complex zone networking.

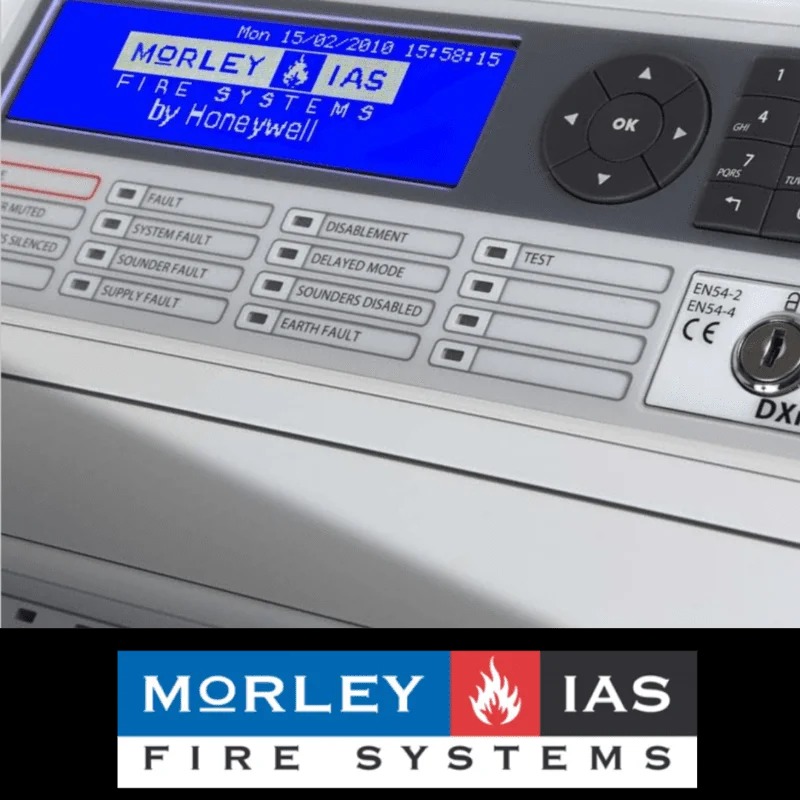

· DX Connexion Series (DXc1, DXc2, DXc4): Highly reliable, networkable addressable panels available in 1, 2, or 4-loop configurations. Known for their 'plug and play' rapid installation.
o Application: Mid-sized offices, educational institutions and healthcare facilities requiring flexible expansion.
· Morley Lite Series (2, 4, 6, 8 Zone Panels): A conventional Class-B panel designed for simplicity and durability.
o Application: Small businesses, retail shops and local warehouses that need cost-effective, straightforward zone monitoring.
2. Advanced Fire Detectors
Morley utilizes cutting-edge Application Specific Integrated Circuit (ASIC) technology to provide rapid fire detection while eliminating false alarms.
· Photoelectric Smoke Detector (Model: HM-PSE-UL / MI-PSE-S2): Utilizes an advanced optical sensing chamber.
o Application: Office floors, hotel rooms, server rooms and clean environments where slow-smoldering fires are a primary risk.
· Thermal Heat Detector (Model: HM-RHSE / MI-FHSE-S2): Triggers upon sensing a rapid rate-of-rise in temperature or reaching a fixed thermal threshold (e.g., 58°C).
o Application: Kitchens, boiler rooms and manufacturing floors where dust, steam, or smoke are naturally present, making optical smoke detectors unsuitable.
· Multi-Criteria / Multi-Sensor Detector (Model: HM-PTSE / MI-PTSE-S2): Combines photoelectric and thermal sensing to detect a wider range of fire profiles.
o Application: Critical infrastructure, laboratories and archives requiring maximum sensitivity and zero false-alarm tolerance.
3. Manual Call Points (MCPs)
Occupant-triggered devices allow individuals to immediately activate the building's fire alarm upon visually confirming a threat.
· Addressable Glass/Plastic MCP (Model: HM-MCP-GLASS / MI-MCP-G): Highly visible red housing with a resettable frangible element and built-in loop isolation options.
o Application: Strategically placed at all fire exits, stairwell entrances and main building corridors for immediate manual evacuation triggering.
4. Audio-Visual Alarms (Sounders & Strobes)
Evacuation requires clear, unmissable notifications. Morley’s loop-powered output devices ensure ADA compliance and maximum acoustic coverage.
· Addressable Wall Sounder (Model: CWSO-RR-S1 / WSS-PRON05): Delivers up to 32 selectable tones with adjustable volume settings.
o Application: Standard office environments, hotel hallways and classrooms for general auditory evacuation alerts.
· Combined Sounder & Strobe / Horn Strobes (System Sensor P2R Series): Combines high-decibel auditory warnings with intense multi-candela visual flashing.
o Application: Noisy manufacturing plants, server farms and areas designed to accommodate hearing-impaired occupants.
5. Interface Modules
Modules are the crucial communication bridge that allows the Morley panel to control, isolate and monitor third-party building systems during an emergency.
· Monitor Modules (Model: MI-DMMI / HM-DMMI): Translates input from non-addressable external devices into the addressable loop.
o Application: Monitoring water-flow switches in sprinkler systems, checking the status of conventional gas-detectors, or tracking fire door statuses.
· Control / Relay Modules (Model: MI-DCMO / HM-DCMO): Provides dry contact outputs to activate or deactivate external machinery.
o Application: Crucial for life-safety automation—used to shut down HVAC systems (preventing smoke spread), release electromagnetically locked access-control doors, or trigger automatic elevator recall to the ground floor.
· Fault Isolator Module (Model: MI-DISO): Protects the system from wire-to-wire short circuits.
o Application: Placed between devices on the loop to ensure that a localized short circuit does not disable the entire fire alarm network.
6. Configuration & Programming Software
Behind every smart building is powerful cause-and-effect programming ensuring precise system reactions.
· DXc Configuration Tool (SPK Part 795-097): PC-based software used by engineers to map out the fire system offline.
o Application: Creating complex Boolean logic (e.g., 'If detector in Zone A triggers, only sound alarms in Zone A and B and shut down HVAC unit 1'). Used for system diagnostics, custom text inputs and event-log downloading.
· Morley Max Configurator (USB/PC): Advanced, intuitive software allowing for rapid programming.
o Application: Allows commissioning engineers to configure the entire system remotely and upload the configuration directly via USB without needing a laptop on-site.
Upgrade Your Life Safety Infrastructure Today Morley-IAS Fire Alarm Systems deliver uncompromising safety, backward compatibility and unparalleled integration. Whether you are retrofitting a legacy system or designing fire safety for a new commercial build, Morley’s ecosystem of panels, detectors and modules provides a highly reliable, compliant and cost-effective solution.
Morley Max Fire Alarm Control Panels Latest Series Makes the entire sereis more powerful with BMS Integration having 2 Loop 4 Loop and up to 8 Loop Fire ALarm Panel Conenctivity Large Touch Screen Colour Display Networking Options and Desktop Computer Cloud Software. Morley Max MA-2000 and MA-8000 Controllers are the latest technology devices allowing 127 detectors and 127 devices to be connected in single loop.
