GSS Intelligent Door Interlocking & Multi-Biometric Access Control System.
GSS Door Interlocking System (Airlock / Mantrap Access Control) by Goldline Security Systems is an advanced, microcontroller-based life safety and contamination control solution engineered for cleanrooms, pharmaceutical airlocks, healthcare facilities, research laboratories and high-security data centres.
Designed to prevent cross-contamination and unauthorized entry, the GSS Interlock Controller enforces strict entry/exit logic ensuring that only one door in a designated airlock zone can open at any given time. Equipped with seamless multi-modal credential integration—including AI Facial Recognition, Optical Fingerprint Scanning, RFID/Mifare Smart Cards, Keypads and No-Touch Infrared Push Buttons—the GSS system combines strict airborne particle containment with high-assurance identity verification.
Key Features & System Advantages
• Intelligent Interlock Logic (2-Door, 3-Door, & 4-Door Airlocks): Automatically locks adjacent doors when any single door in the zone is opened or unlocked, maintaining air pressure differentials and preventing air leakage.
• Multi-Modal Biometric Authentication: Integrates high-speed AI face scanning terminals, optical/capacitive fingerprint readers and 13.56MHz Mifare / 125kHz EM proximity RFID card scanners.
• Touchless Egress & Hygiene Operations: Supports infrared wave-to-open sensors, no-touch exit push buttons and contact-free face recognition to minimize physical contact in sterile environments.
• Real-Time LED Status Indicators & Audio Buzzers: Visual traffic lights (Red = Door Locked / In-Use, Green = Door Clear / Ready) paired with audible alarm buzzers for held-open doors and door forced violations.
• Fire Alarm & Emergency Override Integration: Instant fail-safe release mechanism that unlocks all interlocked doors upon receiving a signal from the central Fire Alarm Control Panel (FACP) or manual break-glass unit.
• Heavy-Duty Lock Compatibility: Works with 600 lbs and 1200 lbs Magnetic Locks (EM Locks), Electric Drop Bolts and Mortise Strikes across glass, wooden, aluminum and metallic puff panel doors.
• Centralized Audit Trail & Software Management: Optional RS485 / TCP/IP network interfaces for live event monitoring, time-attendance tracking and door status diagnostics via central access management software.

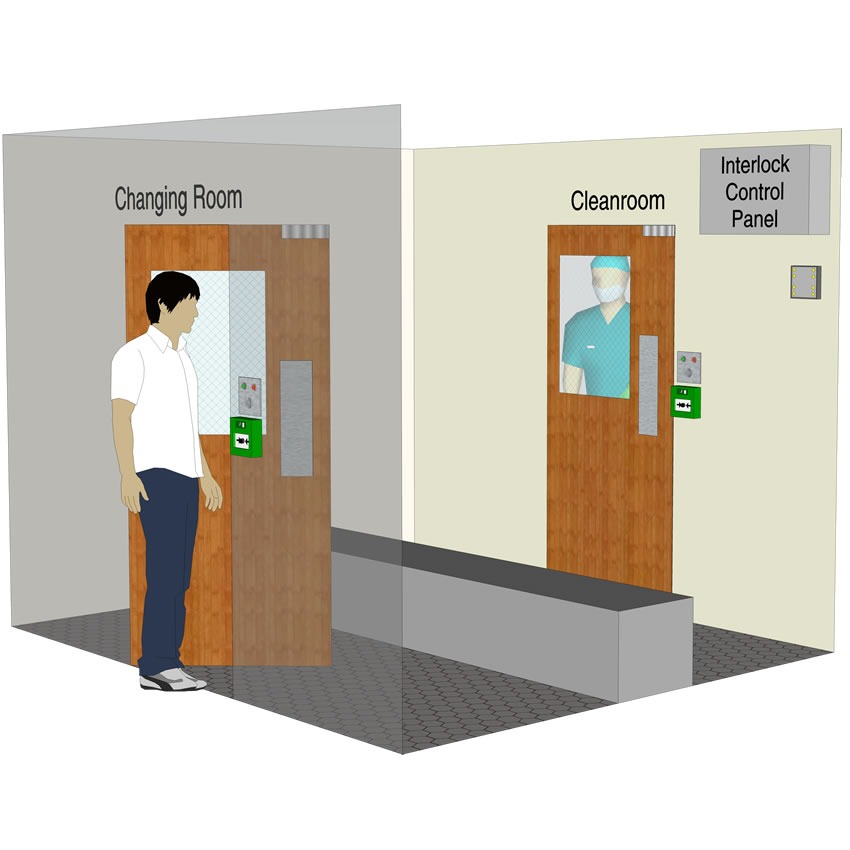

How the GSS Door Interlocking Logic Works
1. Resting State: All airlock doors remain locked (or closed) in a ready state. External LED indicators display GREEN to signal system availability.
2. Access Request: A user presents a credential (Face Scan, Fingerprint, Smart Card or PIN) or presses the entry push button at Door A.
3. Interlock Activation: Door A unlocks. Instantly, the GSS Controller overrides Door B (and any subsequent interlocked doors), locking them and changing their external LED status to RED.
4. Transit & Reset: The user enters the airlock or mantrap buffer zone and closes Door A. Once Door A is fully shut and magnetic sensors confirm closure, Door B resets to ready status, allowing authenticated passage into the cleanroom or secure zone.
Technical Specifications & System Capacity
Parameter Technical Specification
System Type Microprocessor-Based Airlock / Mantrap Controller
Supported Door Configurations 2-Door, 3-Door, 4-Door or Multi-Door Expandable Network
Input Credentials AI Face Recognition, Biometric Fingerprint, RFID (125 kHz) / Mifare (13.56 MHz), PIN Keypad
Exit Devices No-Touch IR Exit Sensors, Stainless Steel Push Buttons, Emergency Break Glass
Door Lock Types Supported Electromagnetic Locks (600 lbs / 1200 lbs), Electric Drop Bolts, Electric Strikes
Operating Voltage 12V DC / 24V DC (via Integrated Power Supply Unit with Battery Backup)
Door Status Feedback Magnetic Door Position Contacts / Reed Switches
Display & Signaling Dual-Color LED Traffic Lights (Red/Green), Built-in Piezo Alarm Buzzer
Door Open Delay Time Adjustable from 1 to 99 Seconds
Emergency Safety Input Dedicated Fire Alarm Relay Interface (Fail-Safe Egress Configuration)
Operating Temperature / Humidity 0°C to 50°C
Enclosure Material Powder-Coated Sheet Metal / ABS Wall-Mount Enclosure
Key Components & Integrated Hardware Ecosystem
To deliver a complete turnkey mantrap solution, the GSS Door Interlocking System pairs with the following peripheral components:
1. Primary Authentication Terminals
• AI Facial Recognition Terminals: Touchless, high-speed face scanning with mask detection and live-body spoof protection.
• Biometric Fingerprint Readers: High-precision optical sensors with scratch-resistant glass covers.
• Proximity & Smart Card Readers: Dual-frequency RFID / Mifare reader modules for contactless badge scanning.
2. Locking & Hardware Peripherals
• Electromagnetic Locks (EM Locks): Heavy-duty 600 lbs / 1200 lbs holding force maglocks with armature plates and ZL brackets.
• Drop Bolt Locks & Electric Strikes: High-security Mortise drop bolts for flush-fitting glass and aluminum frame doors.
• Magnetic Door Sensors: Heavy-duty surface or flush-mount reed switches for accurate door closure feedback.
3. Exit & Emergency Override Controls
• No-Touch Infrared Exit Switches: Hygienic wave-to-exit sensors with LED rings (Blue/Green).
• Stainless Steel REX Push Buttons: Durable mechanical request-to-exit push buttons.
• Emergency Break-Glass Units: Green glass-break stations for immediate manual lock override during critical emergencies.
4. Power & Signaling Accessories
• GSS Power Supply Unit (PSU): 12V DC, 5A / 10A regulated power supply with trickle-charge circuitry for 12V 7Ah SLA backup batteries.
• Two-Color LED Indicator Panels: Cleanroom-compatible flush-mount Red/Green indicator displays.
Commercial & Industrial Applications
• Pharmaceutical Cleanrooms & Air Showers: Prevents ambient air intrusion and controls cleanroom pressure cascade levels (ISO Class 5–8).
• Hospital Isolation Wards & Operating Theaters: Controls cross-contamination between infectious isolation rooms, scrub rooms and sterile corridors.
• Data Centers & Network Operations Centers (NOC): Prevents tailgating and piggybacking into sensitive server halls using mantrap security doors.
• Research Laboratories & R& D Facilities: Enforces strict multi-factor entry protocols for biological, chemical and nuclear safety zones.
• Bank Vaults & Currency Cash Chests: High-security dual-custody access management requiring multi-door physical security interlocking.
