Secure your premises with the ALGATEC 275 Series Electromagnetic Lock (600 lbs). UL Listed, fail-safe, and dual voltage (12/24 VDC). Ideal for access control and fire safety.

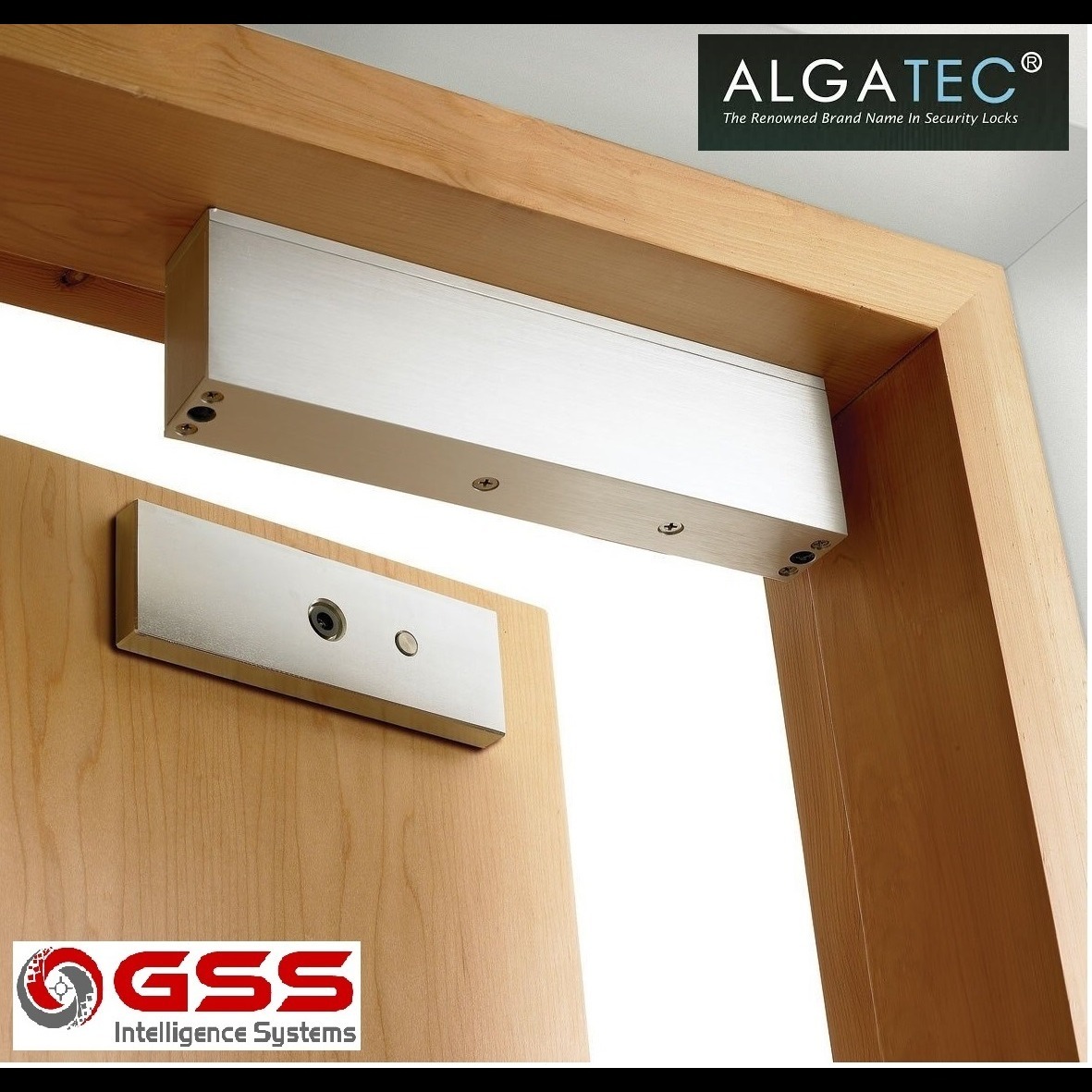

Upgrade your access control infrastructure with the highly reliable ALGATEC 275 Series 600LBS and 1200LBS Electro Magnetic Lock Engineered to deliver up to 600 lbs of holding force, this EM lock is a premium choice for securing commercial doors, offices and access-controlled environments.
Designed to meet rigorous fire and life safety requirements, it features an auxiliary locking mechanism with no moving parts, ensuring trouble-free, fail-safe operation during emergencies. At Goldline Security Systems, we supply this UL Listed magnetic lock to ensure that your building's security and compliance standards are never compromised.
Key Features & Benefits
· Certified Security: UL Listed for proven reliability in fire and life safety applications.
· Dual Voltage Operation: Selectable 12 VDC or 24 VDC power input for flexible installation across various access control boards.
· Fail-Safe Operation: Instantly releases the door when power is cut, ensuring safe emergency exits.
· Zero Residual Magnetism: Prevents the door from sticking after power is removed, ensuring a smooth and immediate release.
· Low Maintenance & Energy Efficient: Designed without mechanical moving parts to bind or wear out, effectively lowering both energy consumption and maintenance costs.
Technical Specifications
Specification
Details
Holding Force
Up to 600 lbs
Input Voltage
12 VDC / 24 VDC (Selectable)
Current Drain
480mA±10% (12VDC) / 240mA±10% (24VDC)
Magnet Dimensions
250 x 42 x 26 mm
Armature Dimensions
180 x 38 x 11 mm
Operating Temperature
-10°C to 55°C (14°F to 131°F)
Housing Finish
Anodized Aluminium
Weight
Approx. 2.0 kg
Ideal Applications
· Commercial Buildings: Perfect for interior access-controlled wooden, glass or metal doors.
· Fire & Life Safety Doors: Seamlessly integrates with emergency exit systems.
· High-Traffic Areas: Built for constant, daily use in busy facilities without wearing down.
Secure your facility today with the industry-standard ALGATEC 275 Series. Contact us to place your order or request a quotation.
